Built for efficient on-site concrete production, the LTM25 self-loading concrete mixer truck combines 2.5 m³ batch capacity, automatic loading and weighing, 4×4 mobility, and 270° drum discharge. It streamlines mixing and transport, helping improve productivity and reduce labor for road, housing, and infrastructure projects.
Modelo :
LTM25ODM/OEM :
AvailableOutput per Batch :
2.5Largo ancho alto :
6800
2.5m³ Self Loading Mixer Features
1. Intelligent Design & Automated System: The leading automatic feeding and mixing system, combined with an electronic metering system, ensures precise automatic material weighing, mixing, and discharging, guaranteeing high efficiency and consistency while minimizing human error.
2. User-Friendly Operation & Ergonomic Design: Simple and intuitive operation, with an adjustable steering wheel that can be freely adjusted according to individual driving habits, enhancing comfort and flexibility during operation.
3. High Efficiency & Cost Savings: Efficient output saves time, labor, and costs. The design of the mixing tank and loader optimizes transportation and operational workflows, improving overall productivity.
4. 270-Degree Rotation & Perfect Integration: The mixing and discharging process can rotate 270 degrees, providing greater operational flexibility. The perfect integration of the mixing tank, loader, and transport truck forms a complete, high-efficiency solution for operations.
Self Loading Mixer Technical Parameters
| Parameter | Unit | LTM25 |
| Type | / | Integral frame chassis movable, self loading, mixing, transporting |
| Output per Batch | m³ | 2.5 |
| Batch Cycle Time | min/batch | ≤15 |
| Batches per Hour | batch/h | 4 |
| Hourly Output | m³/h | 10 |
| Operating Weight | kg | 6800 |
| Engine | / | Yunnei four-cylinder, intercooled turbo |
| Engine Speed | rpm | 2200 |
| Rated Power | kW | 76 |
| Drive Type | / | 4×4 |
| Steering Type | / | Rear wheels steering |
| High Speed | km/h | 32.5 |
| Low Speed | km/h | 5.5 |
| Gearbox | / | Four forwards, four backwards |
| Tire | / | 23.5-16 steel wire tyre |
| Drum Geometric Volume | m³ | 3.6 |
| Optimal Mixing Capacity | m³ | 2.2-2.5 |
| Drum Rotation / Discharge | ° | 270° tank rotation; no dead angle for discharging around the vehicle |
| Bucket Capacity | m³ | 0.35 |
| Bucket Discharge | / | Hydraulic gate, electric control |
| Operation Control | / | Electric control button four-way pilot handle |
| Water Supply | / | Hydraulic driving self-priming pump |
| Water Tank Capacity | L | 370 |
| Diesel Tank Capacity | L | 180 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.

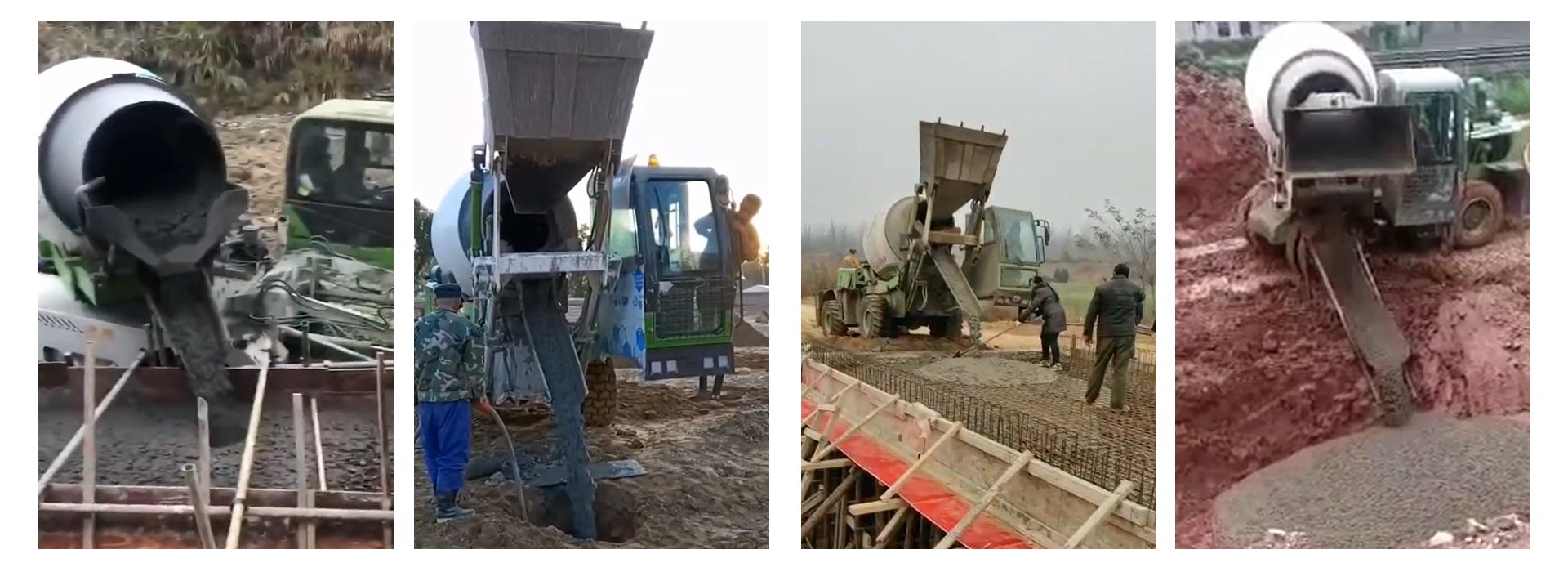

Self Mixing Concrete Truck Actual Work
The LTMG brand self mixing concrete truck is sold in many countries around the world. Customer satisfaction is increasing day by day. In the road construction and construction industries, LTMG's machines provide the best experience for each customer.
FAQ
Q: Is a self-loading mixer suitable for rough or muddy construction sites?
A: Yes, especially models with 4-wheel drive, suitable tires, adequate ground clearance, and strong axle design. However, performance still depends on soil condition, slope, load, and weather. Extremely soft ground may require site preparation or additional traction measures.
Q: What are the main daily maintenance items?
A: Check engine oil, coolant, hydraulic oil, tire condition, lubrication points, water system, hydraulic hoses, bucket pins, and drum operation. Regular cleaning and lubrication are particularly important because the machine works continuously with dust, aggregates, water, and cement.
Q: How should the mixing drum be cleaned after work?
A: The drum should be washed before residual concrete begins to harden. Run clean water through the drum and discharge system after operation. Hardened concrete buildup reduces drum capacity, increases machine weight, and can eventually damage the mixing blades and drum.
Q: Can a self-loading mixer travel on public roads?
A: This depends on local vehicle regulations, registration requirements, machine dimensions, weight, and roadworthiness rules. Buyers should check local regulations before using the machine on public roads.
